Maxine - Specifications
Home Page



Equipment and Machinery


Sound Boat Works
Vernon Brisley
P. 0. Box 532
Freeland, WA 98249
ph: 360-331-1038
fax: 360-331-6747



Designer: Arno Day, Sedgwick, Maine
Builder: Sound Boat Works, Vernon Brisley
Whidbey Island, Washington
Year: August 2000
Type: Open diesel launch (Maine lobster style)
Beam: 7 feet 10 inches
Draft: 2 feet 8 inches
Displacement: ~5,000 pounds
Power: 54 hp lsuzu diesel MER, Seattle, Washington
(See below for more information)
Speed: Cruising, 12 knots; top, 14 knots
Tankage: 40 gallon stainless steel stern tank

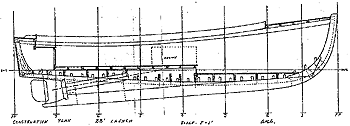

Hull: Red cedar carvel planking on white oak ribs, Douglas fir keel and deck framing, silicon bronze fastened throughout
Construction: Plywood / epoxy-glass / Awlgrip painted decks, red cedar ceiling, ash coaming, teak and brass rails and guards, mahogany console, bronze hardware

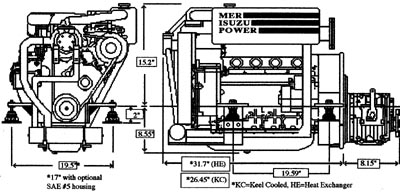

MER Isuzu MP-54 Specifications
(The link is to an Adobe Acrobat file.
If you don't have the free Acrobat reader,
you can get it at Adobe.)
